Standing Seam Metal Panels

Add another level of class to your roof or building project with Standing Seam Metal. These heavy-duty interlocking panels have no exposed fasteners, creating a smooth, classy look that will provide superior protection for many years. We make these panels to order so you can custom order any length you need. Our roll-former for standing seam metal is on a trailer and able to be brought to your job-site for on-site production (see video below).

standing seam metal panel profiel
Profile of Our Standing Seam Panel
standing seam profie
Standing Seam Interlocking Overlap

Standing Seam Panel Details

  • 26 Gauge – Grade 50 Metal Panels
  • Panel Coverage: 15 ½″
  • Rib Height: 1½″
  • Available in all our metal colors
  • 40 year warranty
  • No exposed fasteners
  • Good for both residential and commercial applications

Standing Seam Trim Options

8 1

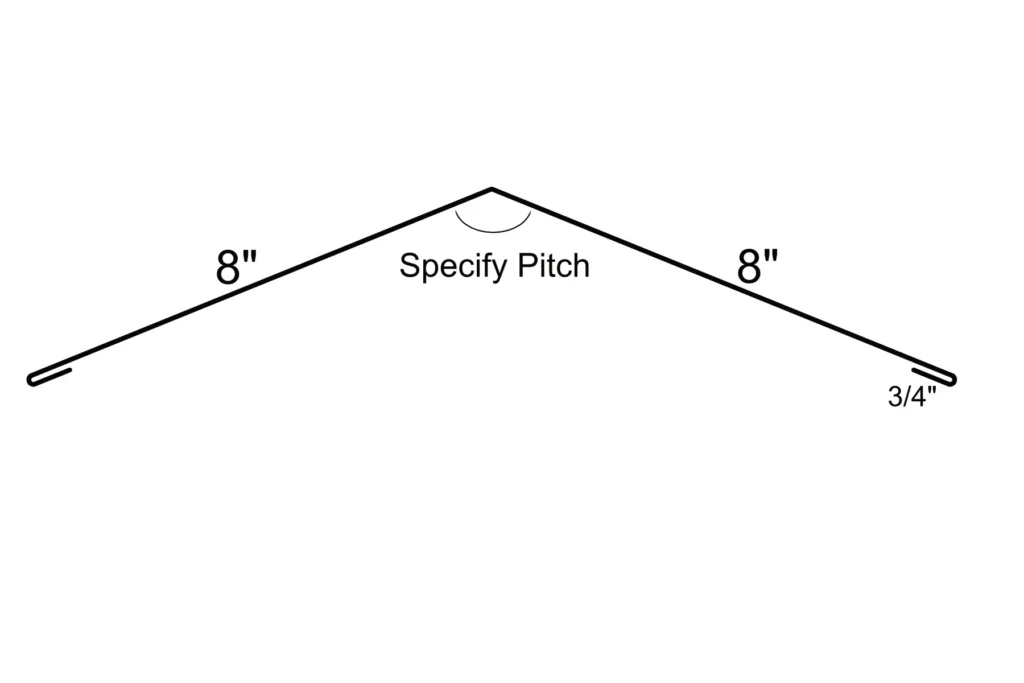

S-1. Open Hem Flat Ridge Cap

6

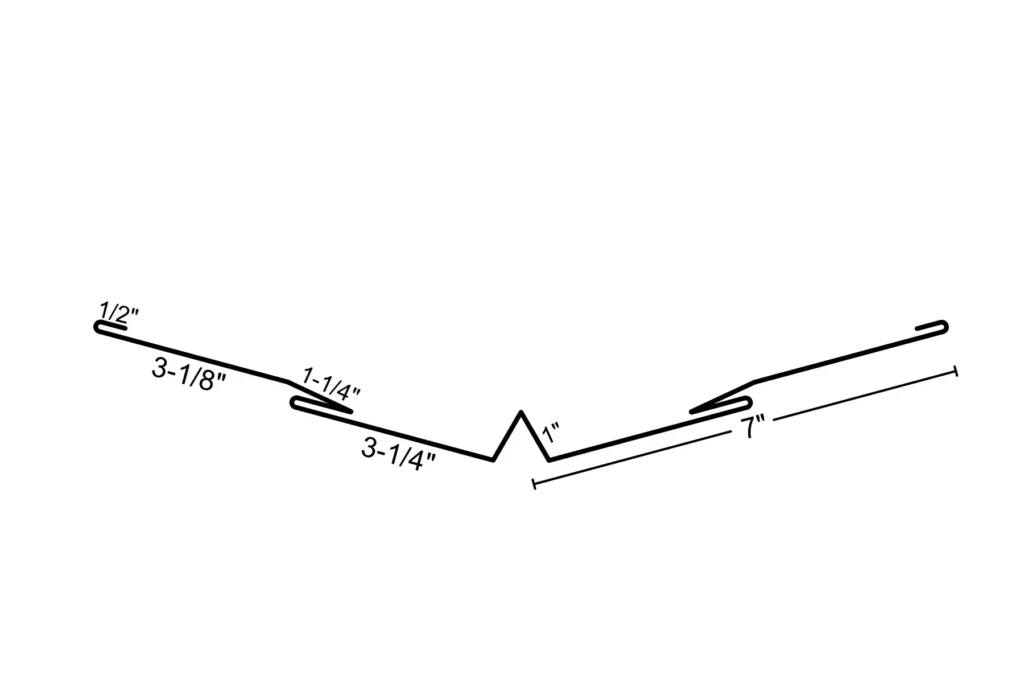

S-2. Open Hem Valley Trim

5

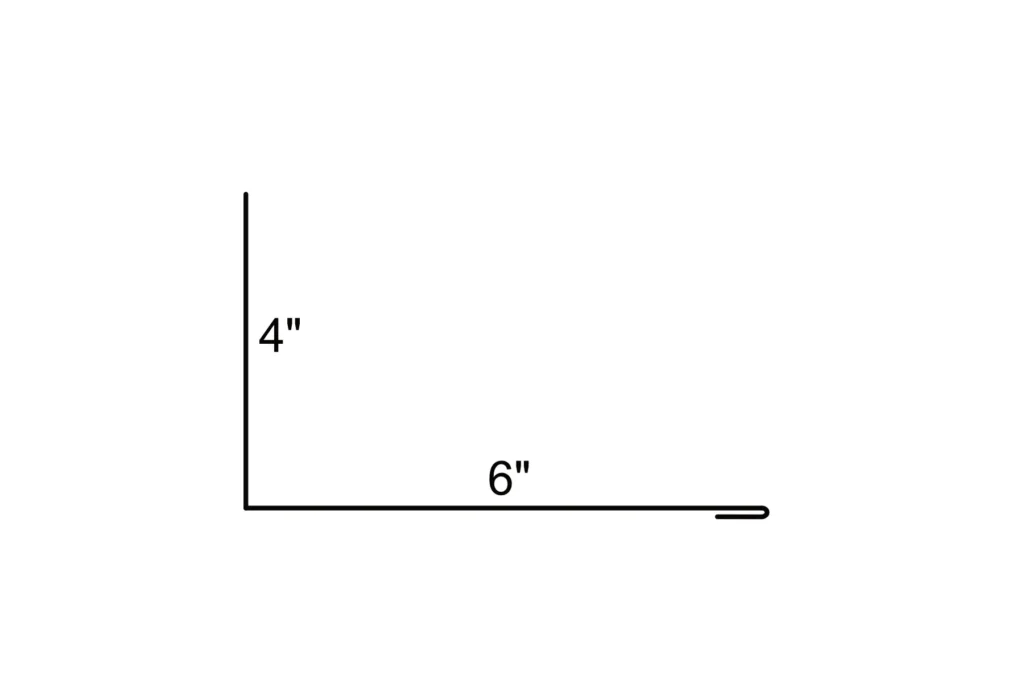

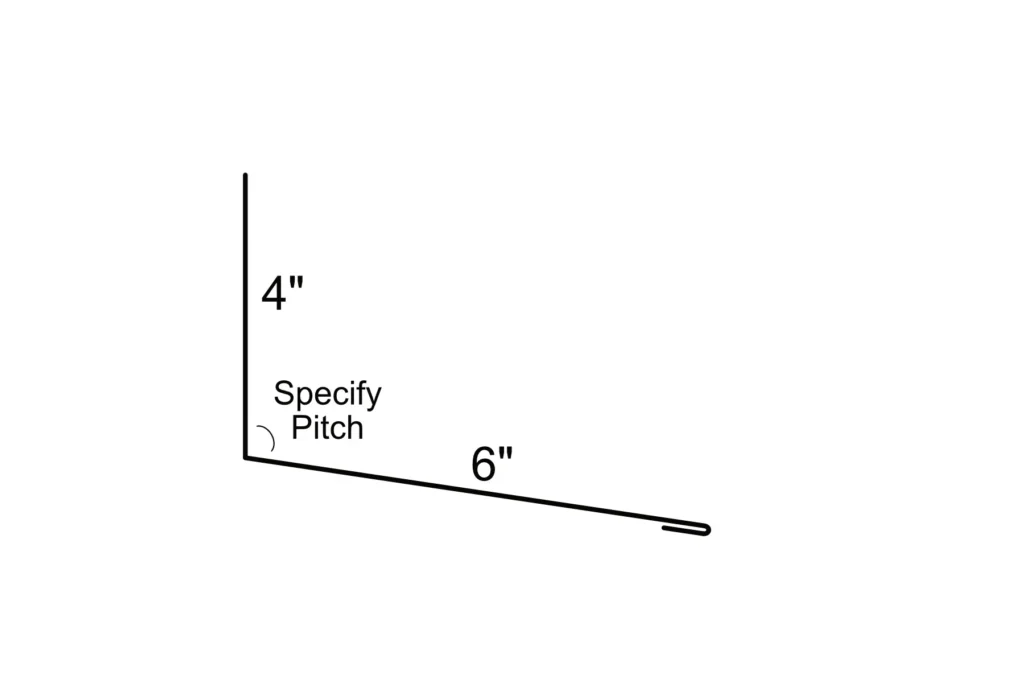

S-3. Open Hem Sidewall/Endwall

4

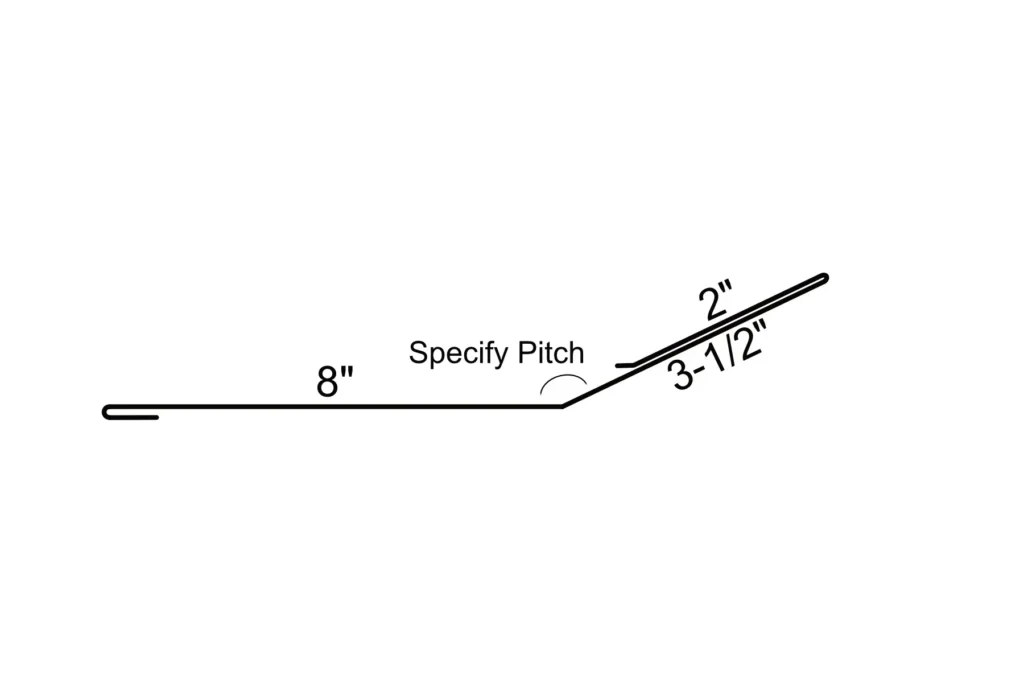

S-4. Open Hem Transition Flashing

7

S-5. Cleat

2

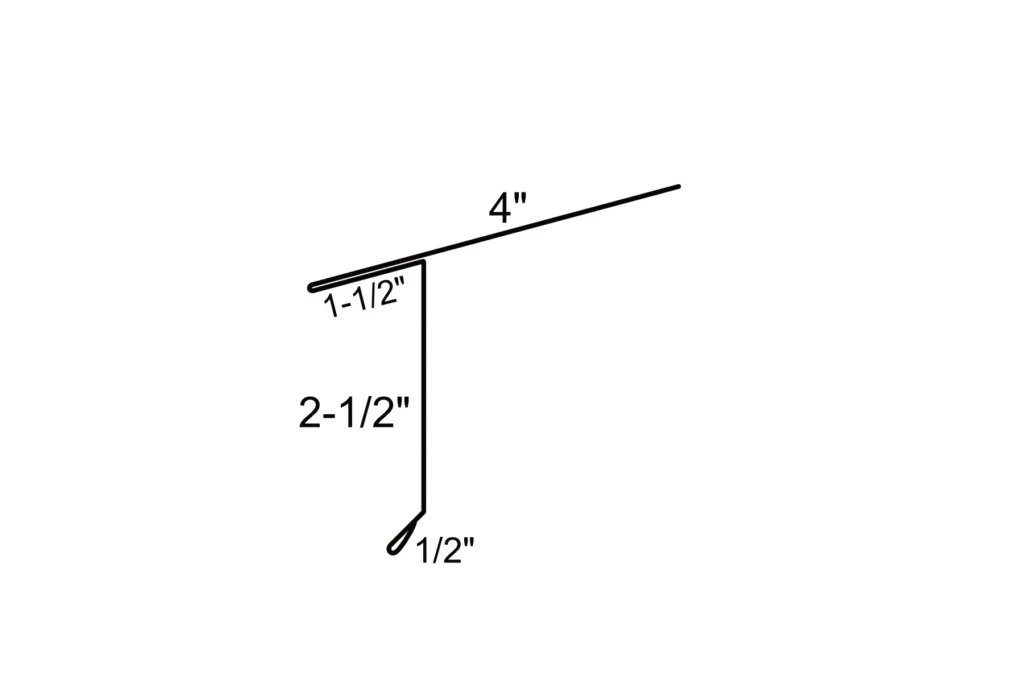

S-6. Drip Edge

1

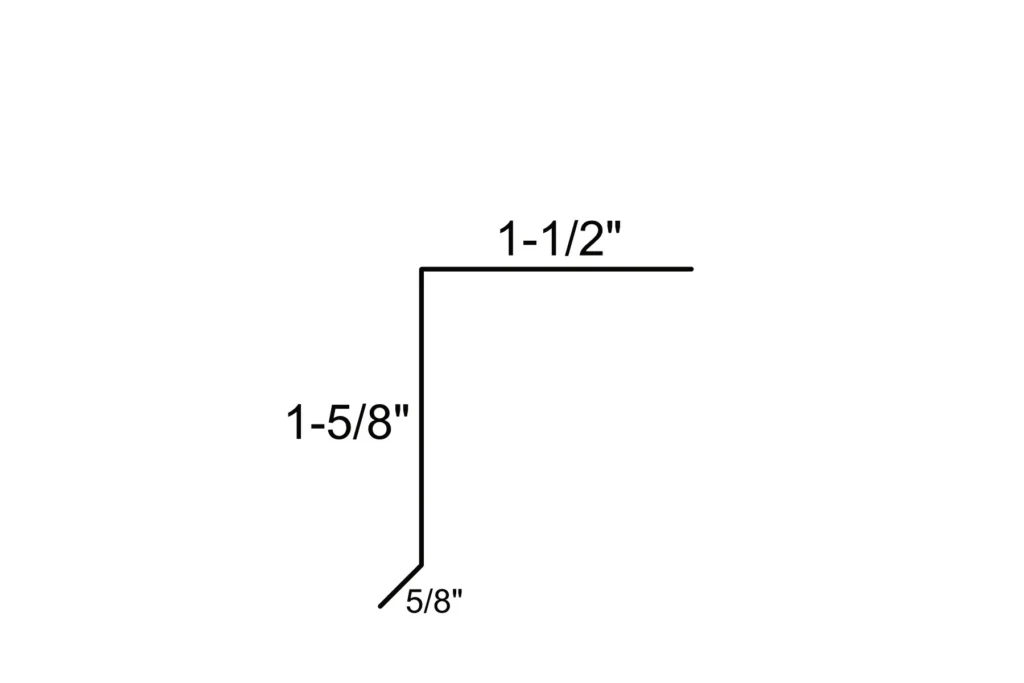

S-7. Corner

3

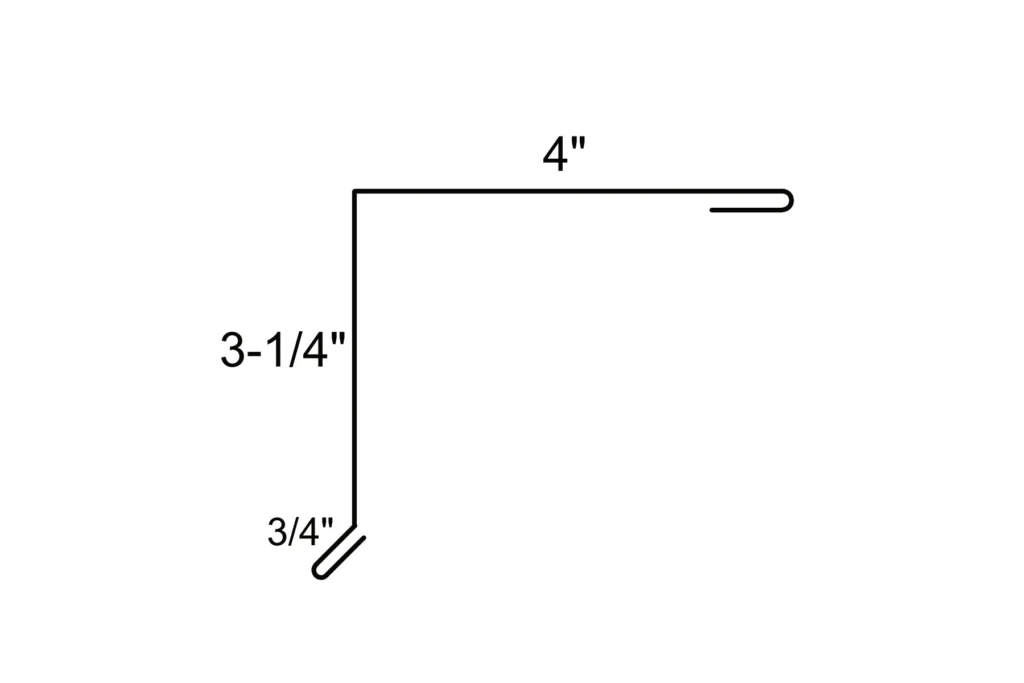

S-8. Open Hem Residential Rake

z-trim for standing seam metal

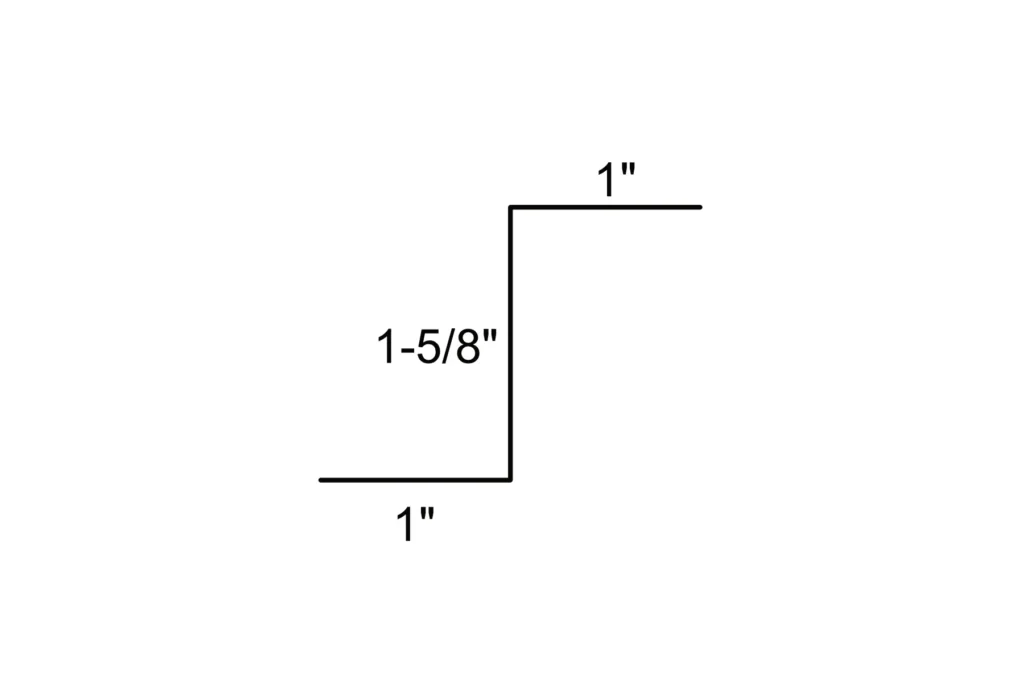

S-9. Z-Trim

wafer screws 1

Wafer Screws for Standing Seam

Available in 1″ and 1½″

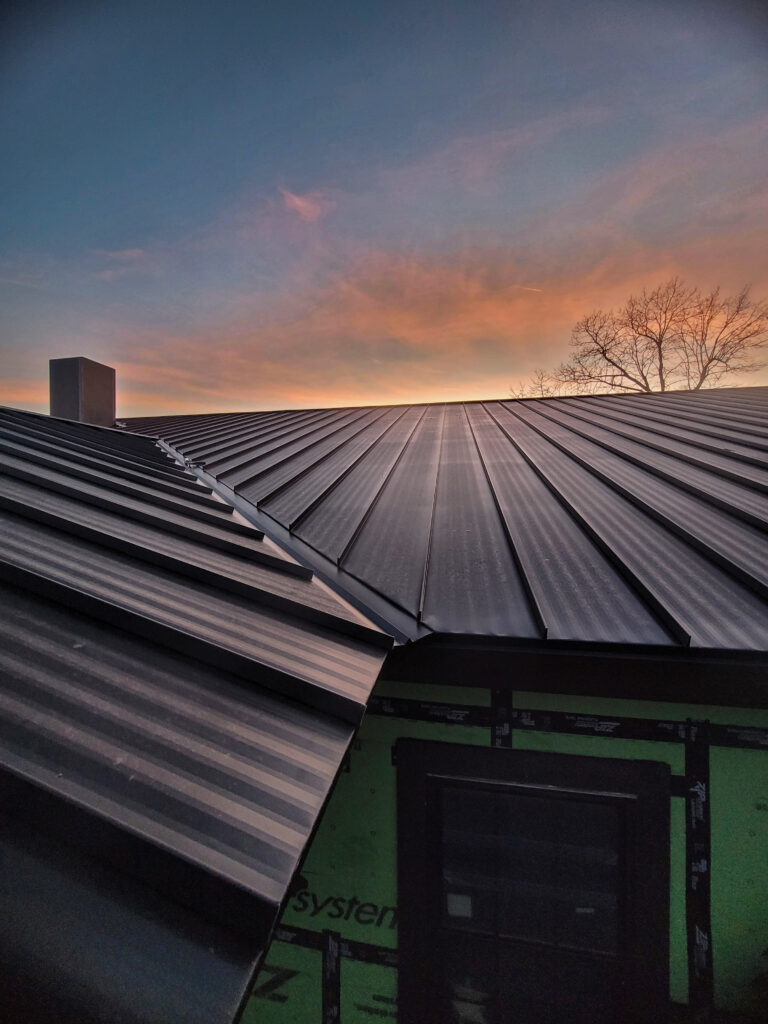

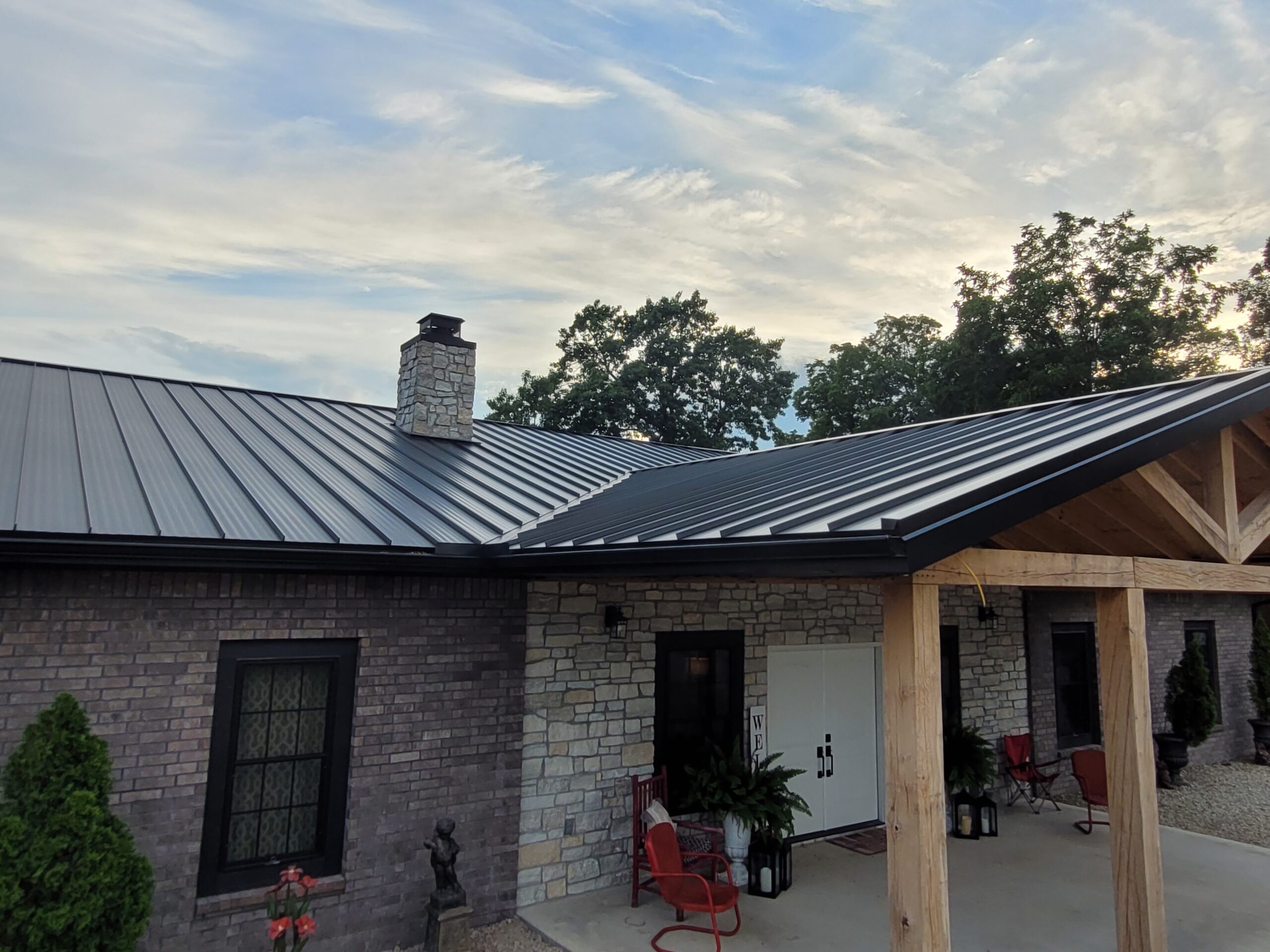

Standing Seam Construction Projects
